Why Choose Friction Stir Welding for Your Cold Plate Assembly?

Cold plates for electronic cooling feature a casing with a cooling liquid channel and a cover. Ensuring watertightness, thermal efficiency and durability at a cost-effective price is vital. FSW welding addresses these requirements.

cold plate technology

No risk of leak

Solid-state FSW process eradicates porosity, ensuring a leak-proof seal in both aluminum and copper.

liquid cold plate welding

2x thermal boost

Enables use of high-conductivity materials like AA1050 and copper doubling thermal efficiency.

fsw cold plate

Cost divided by 10

Up to 10x less costly than traditional methods like copper tubing, brazing or conventional welding.

FSW chill plate

High resistance

Achieves mechanical strengths of up to 4300 psi (300 Bar) without the need for post-heat treatment.

Technical Specifications of FSW-Welded Cold Plates

water jacket welding

To guarantee optimal FSW welding results for your cold plate, several critical factors must be evaluated. Each of these contributes to the overall quality, durability and performance of the assembled product:

  • Dimensions of the cover: The thickness of the cover is a pivotal aspect, with a range from a minimum of 1 mm up to a maximum of 12 mm. Your choice in this matter will directly influence the welding parameters, including the rate of travel and rotational speed, as well as the type of tool selected for the operation.
  • Tool path definition: The trajectory that the FSW tool will follow during the welding process needs to be precisely defined. Accurate mapping of the tool path ensures uniformity in the weld, leading to consistent mechanical properties and robust connections across the entire cold plate.
  • ‘Dead Zone’ management: This is the area where the FSW tool exits the weld. Managing this ‘Dead Zone’ effectively is crucial for achieving a high-quality weld. Incorrect management can lead to surface irregularities and variations in weld strength, affecting both the visual appeal and structural integrity of the final product.

The dimensions of the cover hold significant importance in multiple facets of the cold plate functionality, affecting not just the welding process but also the mechanical strength of the final assembled unit. Carefully selecting the thickness and width of the cover becomes a strategic endeavor, as these dimensions play a critical role in the cold plate ability to resist pressure. There are generally two primary strategies to enhance this resistance: either by increasing the cover’s thickness for greater rigidity or by narrowing its width to minimize the surface area vulnerable to stress.

Our team of FSW experts has extensive experience in optimizing these variables and is fully equipped to guide you in crafting the ideal design for FSW welding of your cold plate. To ensure your project success, we offer specialized design assistance services that encompass material selection, thermal performance optimization and quality assurance.

motor controller assembly
custom liquid plate

The definition of the tool path and the ‘Dead Zone’ are critical aspects in friction stir welding, especially when it comes to ensuring quality and precision in the end product. The tool path outlines the exact trajectory that the FSW tool will take, significantly affecting the uniformity and strength of the weld. Meanwhile, the ‘Dead Zone’ refers to the area where the FSW tool exits and managing this zone is crucial for achieving a clean, high-quality weld.

Incorrect settings in either of these aspects can result in various issues like imperfections, weaker welds or even mechanical failures. Our team of FSW specialists is well-equipped to provide expert consultation on these technical nuances, helping you avoid common pitfalls and optimize your welding process for superior results.

For deeper insights into these critical aspects of friction stir welding, don’t hesitate to consult our specialists.

custom liquid cold plate assembly

Pressure test

Pressurized air is introduced into the cold plate channel to gauge the cover burst resistance. This test helps to ensure that the plate can withstand external forces without failure.

water cooling plates

Sealing test

This is a critical test performed to confirm the quality of the welded cold plate. A successful sealing test ensures that there are no leaks and that the welded joint has a strong, hermetic seal.

thermal management technology

Thermal management

Experimental characterization of the thermal resistance and pressure drop in the cold plate is undertaken. This process evaluates the cold plate efficiency in dissipating heat, which is crucial for applications in demanding environments.

liquid cold plate test

Visual test

The visual test aims to identify the presence of excessive flash. It also checks whether the force applied by the shoulder on the workpiece surface was adequate. Inadequate force or excessive flash could indicate potential weaknesses in the weld.

Have a project in mind?

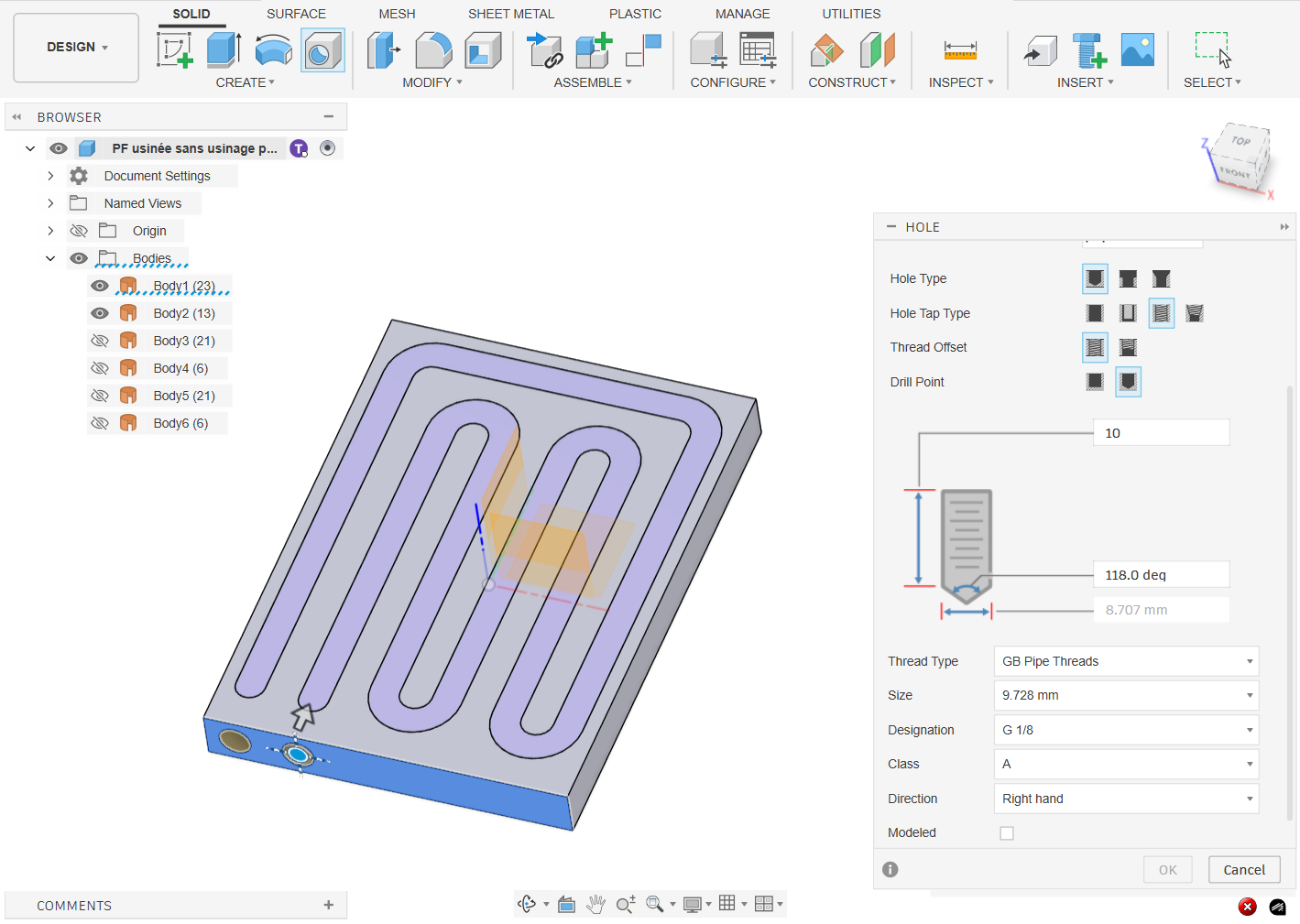

Unlock the full potential of your cold plate project with our comprehensive FSW Design Guidelines. Our guide covers everything from an introduction to Friction Stir Welding and its advantages in liquid cold plate assembly, to a detailed walkthrough of the FSW process itself. Plus, get exclusive insights into designing for a 100% quality cold plate. Fill out the form to request your tailored Design Guidelines and let our experts help you every step of the way.

Live FSW Showcase: Diverse Cold Plates Assembled by Friction Stir Welding

Comparing FSW to Traditional Cold Plate Assembly Techniques

Friction Stir Welding vs. Copper Tubing

When evaluating methods for joining cold plates, the advantages of friction stir welding technology over the copper tubing technique become evident. Firstly, the copper tube method limits cooling performance, making it difficult to achieve high channel density. Additionally, its reliability in conductivity is compromised by several manufacturing steps, such as bending, the application of thermal paste and hydroforming. Notably, when a copper tube is attached to an aluminum cold plate, it poses a risk of bimetallic corrosion in stringent conditions.

copper tube manufacturing

Contrastingly, friction stir welding presents several distinct benefits. There’s no need for welding between the tube and the end connectors (manifold) when using FSW. Instead, the end connectors are directly machined into the housing. Moreover, the process negates the need for an epoxy coating and subsequent pressing operation for epoxy drying. Overall, friction stir welding offers a more reliable and streamlined solution for joining cold plates.

Friction Stir Welding vs. Gun Drilling

Gun Drilling comes with inherent design restrictions, particularly limiting the cooling surface by forcing liquid paths to be straight lines. This becomes even more problematic for cold plates exceeding 500 mm in length, where the technique struggles with accuracy and consistency. Furthermore, Gun Drilling introduces a vulnerability at the connectors, making them highly susceptible to leakage issues.

In contrast, Friction Stir Welding offers the versatility to create more complex cooling paths, handles long plates with ease, and establishes secure, leak-proof connectors, thereby delivering a more reliable and effective cooling solution.

gun drilling manufacturing

Friction Stir Welding vs. Vacuum Brazing

When it comes to cold plate assembly, cost and safety are two crucial factors that often dictate the choice of technology. Friction Stir Welding and Vacuum Brazing represent two different paradigms in both aspects.

Cost Impact on Cold Plate Technologies

Friction Stir Welding

By using an FSW welding head for machining centers, you can reduce your costs by up to 10 times:

  • Two-in-One: Hybrid welding and machining unit.
  • Fast manufacturing for large and small plates: approximately 10 minutes for welding large plates and about 1 minute for smaller plates, with the ability to weld up to 40 plates on the same table.
  • Low energy consumption: similar to standard machining process.
Vacuum Brazing

Total costs of vacuum brazing operations are steep:

  • High initial investment: a furnace can cost upwards of 1 million euros.
  • Elevated annual maintenance costs.
  • Pre-assembly cleaning of each piece is required.
  • Long brazing cycle: approximately 8 hours.
  • Batch production constraints: part number and size depend on furnace dimensions.

Safety Considerations in Cold Plate Assembly

Friction Stir Welding

FSW is a safe method, aligning with machining-specific safety standards. It also ensures operator health as it produces neither gas nor smoke.

Vacuum Brazing

Vacuum brazing poses a leak risk due to the lack of initial bonding defect detection and pressure-related failures.

Interested in a detailed look at the advantages of FSW over traditional techniques? Check out our comprehensive blog post: Liquid cold plate: FSW assembly for more performance and cost savings.

Thermal Management and Cold Plates: Key Concerns for Critical Sectors

Effective thermal management is pivotal across diverse industries, tackling various challenges like cost reduction and weight optimization for essential equipment. Minimizing pressure loss is another key consideration. Achieving top-notch quality is also vital, especially when dealing with thermomechanical stress factors. Specifically, the surface flatness of a cold plate must be impeccable to ensure ideal thermal contact with electronic components.

Cold plates serve a central role in numerous sectors where thermal regulation is of the utmost importance:

thermal management railways


Optimizing On-Board Systems

thermal management energy


Sustainable Thermal Solutions

thermal management aerospace


High-Performance Cooling

thermal management data centers

Data Centers

Efficient Cooling Solutions

Thermal management defense


Reliable Under Extreme Conditions
